Custom maps

Admin > Settings > Maps

By default, Metabase uses OpenStreetMap tiles for pin and grid map visualizations, and comes with two built-in region maps - world countries and US states. You can change the tiles used for pin and grid maps, and upload additional region maps.

To find the map settings:

1. At the top right of the screen, click grid icon > Admin > Settings.
2. Select Maps from the navigation on the left.

Map tile server

By default, Metabase uses the OpenStreetMap tile server for pin and grid maps. If your organization needs a different look or level of detail, you can point Metabase at a different tile server.

The map tile server sets the background imagery for pin and grid maps. It’s not the same as a custom region map, which uses a GeoJSON file to draw region shapes.

To change the map tile server:

1. Go to Admin > Settings > Maps.
2. Under Map tile server URL, enter the URL template for your tile server.

Use a raster tile URL template

Metabase renders raster tiles (PNG or JPEG).

The URL must be a template with {z}, {x}, and {y} placeholders, and optionally {s} for a subdomain. Metabase fills in the zoom level and tile coordinates as people pan and zoom around the map. The default OpenStreetMap URL is a good example:

https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png

Tile server URLs must start with http:// or https://.

Don’t put a private key in the tile server URL

Metabase sends the map tile server URL to the browser, including in embeds and public links. Anyone who can view a map can read the URL and any key in it.

If your tile server needs a key, use a public, client-side key and restrict it to the domains you serve Metabase from. Mapbox, for example, calls these public tokens.

Metabase uses a single tile server per instance. You can’t specify different tiles for different maps.

Custom region maps

Metabase comes with two built-in region maps: world map with countries and United States map with states.

If you need a map of other regions - like EU countries or NYC neighborhoods - you can specify a GeoJSON file containing region information. You can often find GeoJSON maps by searching online for “[Your region] + geojson”, like “NYC neighborhoods GeoJSON.” Many community members and government organizations have already developed map files for common regions. You can also create your own GeoJSON with a tool like MapShaper or GeoJSON.io.

Custom geoJSON requirements

Your GeoJSON file should:

• Be less than 5 MB in size.
• Contain polygon features defining regions (not just points or coordinates)
• Use geographic coordinates (latitude and longitude) to define region polygons. Metabase doesn’t support projected coordinates, so you’ll need to convert projected coordinates to geographic coordinates.
• Accessible by a public URL. Currently, you can’t upload a GeoJSON to Metabase.

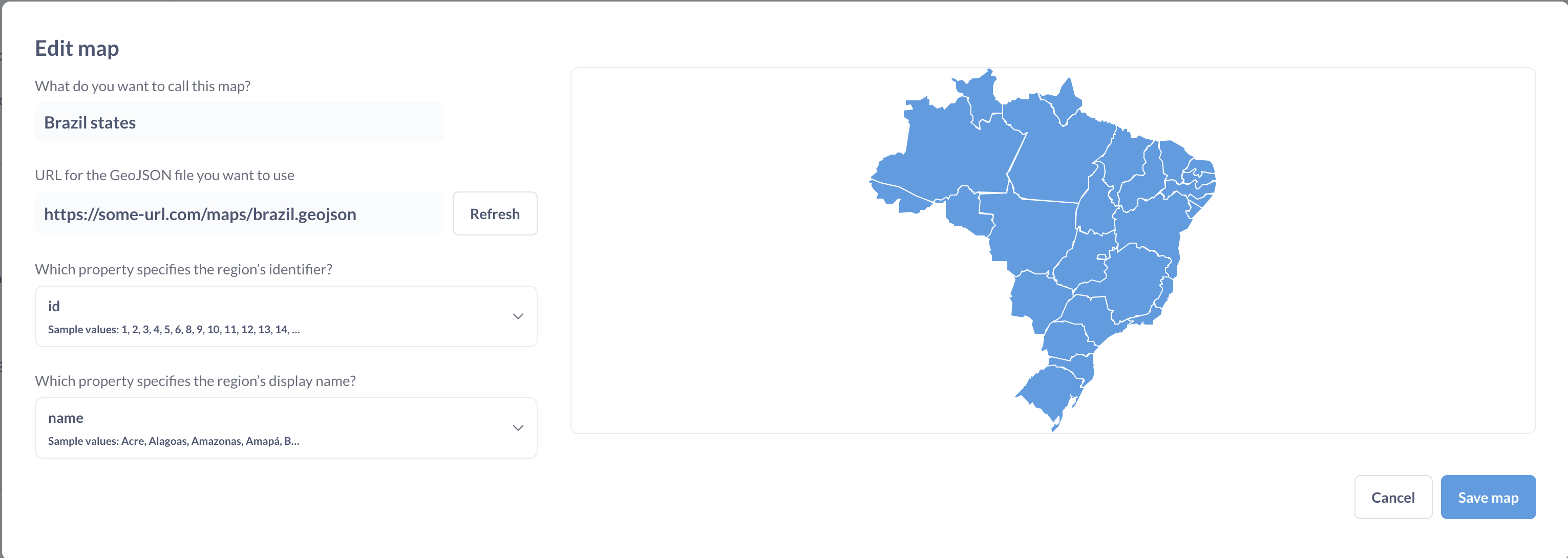

Add a custom map

To add a custom map:

1. Click the grid icon, then go to Admin > Settings > Maps > Custom Maps.

2. Click Add a Map.

3. Enter a name for your map.

4. Provide the URL to your GeoJSON file.

5. Specify the JSON properties that should serve as region identifier and region name.



   • Name of the map will be displayed in the region selector for custom region maps.
   • Region’s identifier is a GeoJSON field that identifies your region. The values in this field should match how the data refers to the regions. The field doesn’t need to match the display name.
   • Region’s display name is a GeoJSON field that specifies how maps will display region names. This field can be different from the region’s identifier.

To pre-load one or more region maps when Metabase starts, you can use the environment variable MB_CUSTOM_GEOJSON or a config file option custom-geojson .

To disable the creation of custom maps, use the MB_CUSTOM_GEOJSON_ENABLED or a config file option custom-geojson-enabled.
